1.Mining rock drilling operation: providing power gas source for down the hole drilling machines and rock drills in underground or open-pit mines to carry out drilling and blasting.
2.Anchor rod support construction: In mining tunnels, drive anchor rod drilling machines to drill holes and install anchor rods to reinforce rock walls.
3.Secondary crushing of crushed stones: providing power for hammers and pickaxes to crush large pieces of ore after blasting.
4.Leveling of mining site: providing power for small pneumatic hammers used to compact mining roads and construction foundations.
5.Drainage system maintenance: Drive pneumatic diaphragm pump for drainage of accumulated water in mining pits or low-lying areas.
6.Bridge pile foundation construction: In field bridge construction, compressed air is provided for the pile foundation air lift reverse circulation drilling rig.
7.Tunnel excavation operation: In railway and highway tunnel construction, multiple rock drilling equipment are driven to perform excavation operations synchronously.
| Item No. | ZD-185/8 |
| Power | 41KW |
| Air delivery | 5m³/min |
| Working Pressure | 8 bar |

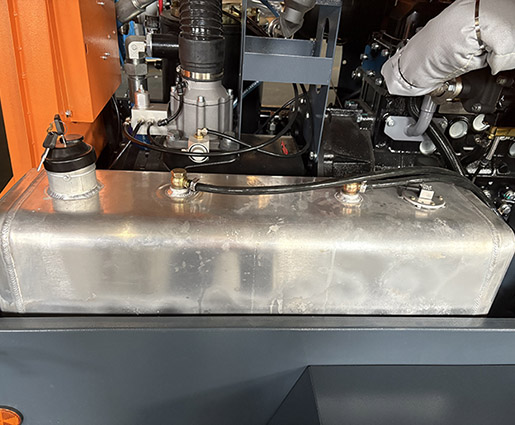

| Oil tank capacity | 75L |
| Weight | 700KG |
| Max working speed | 2400rpm |
| dimension | 1660*1100*1600mm |
| Cooling method | Air cooling |
| wheel specification | Double irrigation four rounds |
| Noise | 75dB |
| Motor | Diesel engine |
