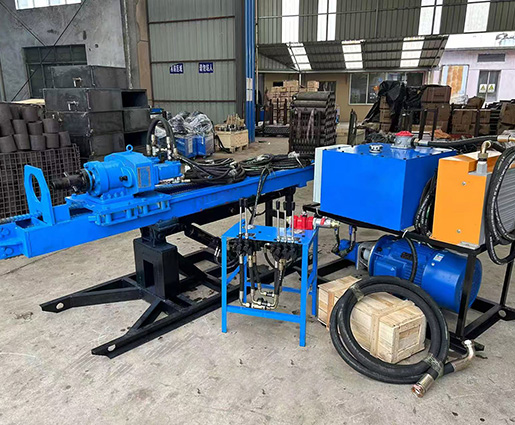

Main Features of this double hydraulic motor anchor drilling machine
1. Dual hydraulic motor drive
Adopting two large torque hydraulic motors in parallel drive, it provides strong power and excellent torque output far beyond conventional models.
2. Super strong rock breaking ability
The enormous output torque enables it to easily penetrate extremely hard rock formations and complex geology, addressing heavy construction challenges.
3. Extremely smooth operation
The dual motor structure ensures even load distribution, greatly reducing vibration and impact during drilling, and ensuring smoother equipment operation.
4. Significant improvement in homework efficiency
The combination of powerful power and high drilling speed significantly shortens the single hole operation time, resulting in excellent engineering efficiency.
5. The core components are long-lasting and durable
High quality products are selected for key components such as power heads and hydraulic components, which are durable and highly reliable.
| Model No. | CSMG50 |
| Air consumption | 9-12m³/min |
| Drilling hole diameter | 90-180mm |
| Equipped with impact tool | CIR/DHD |
| Drilling depth | 25-60m |
| Drill pipe specification | Ф76*1500mm,Ф89*1500mm |
| Maximum torque output of power head | 3600N-m |
| Maximum stroke of power head | 1800mm |
| Maximum lifting force of power head | 45KN |
| Maximum thrust force of power head | 30KN |
| Rated pressure of hydraulic system | 16mpa |
| Motor power | 18.5kw |
| Total mass of drilling rig | 1100KG |
| Output speed of power head | 0-80rpm |
| Tilting angle of propeller | 10°-360° |
