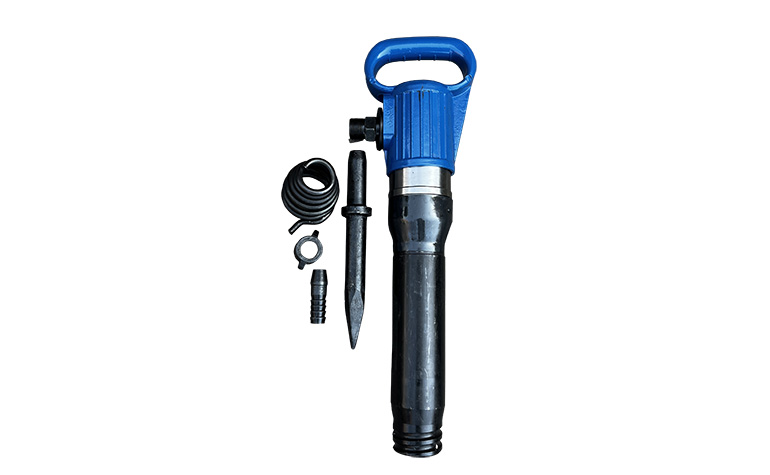

G10 Pneumatic Pick Hammer

The G10 pneumatic hammer is an efficient impact small breaker tool powered by compressed air. It uses the high-speed movement of an internal piston to drive the drill rod, generating a powerful impact force, which is used to crush concrete, rocks, road surfaces and other hard objects.Its structure is sturdy and compact, with flexible operation and powerful power. It is widely used in demolition and excavation operations in fields such as mining, construction, and municipal services, and is renowned for its high reliability and operational efficiency.
Item No. :
G10
Working Pressure :
0.4-0.63Mpa
Weight:
10.5kg
Share
Describe

Applicationas

1.Tunnel excavation and finishing: During tunnel construction, the contour is adjusted, areas with insufficient excavation are dealt with, and local protruding rocks are removed.
2.Rock slope treatment: Repairing the rock slopes beside roads and railways, removing dangerous rocks and conducting surface form treatment.
3.Ice-breaking and snow removal operation: In northern ports, roads, etc., the thick ice layers are broken up and the accumulated snow is compacted to ensure safe passage.
4.Foundation excavation of buildings: In narrow areas where large machinery cannot be used, manual foundation excavation and rock crushing are carried out.
5.Road surface maintenance: Remove the damaged asphalt or cement concrete pavement layer to prepare for re-laying, carried out precisely and efficiently.

Product specifications
Adhering to the business philosophy of honest operation, win-win cooperation
Item No. G10
Working Pressure 0.4-0.63Mpa
Length 580MM
Weight 10.5KG
Cylinder Diameter 80mm
Piston Stroke 155mm
Impact Frequency ≥16HZ
SCFM ≤ 26
Inner diameter of air pipe 16mm
Bit Shank Size Φ24*70mm
Drill Depth 5m

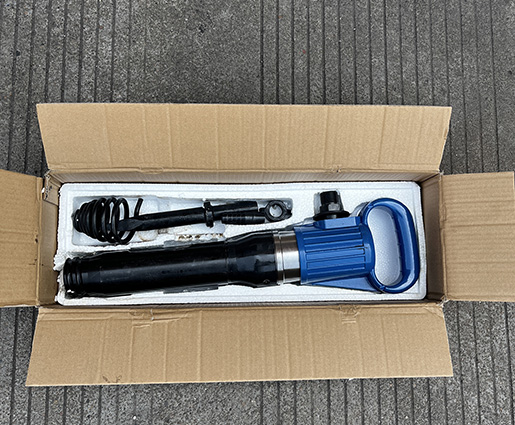

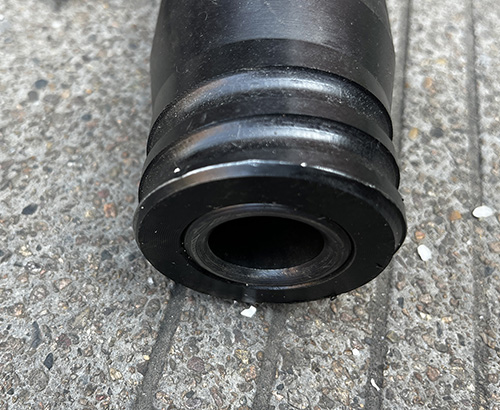

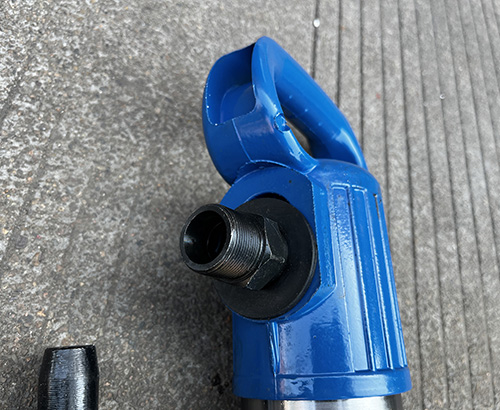

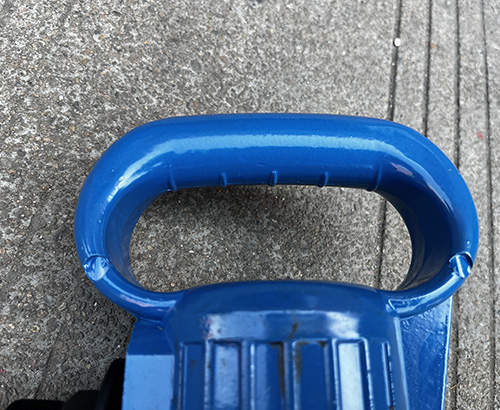

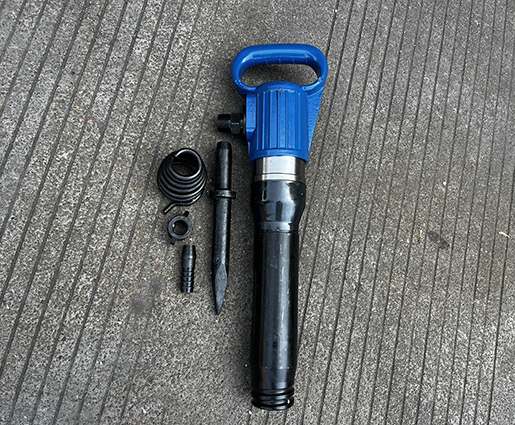

Detail display
Adhering to the business philosophy of honest operation, win-win cooperation
paving breaker
g10 pick hammer
rock drill
paving breaker
pneumatic pick
Product Accessories
