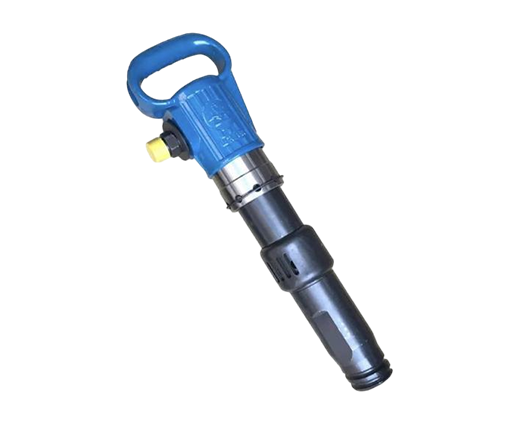

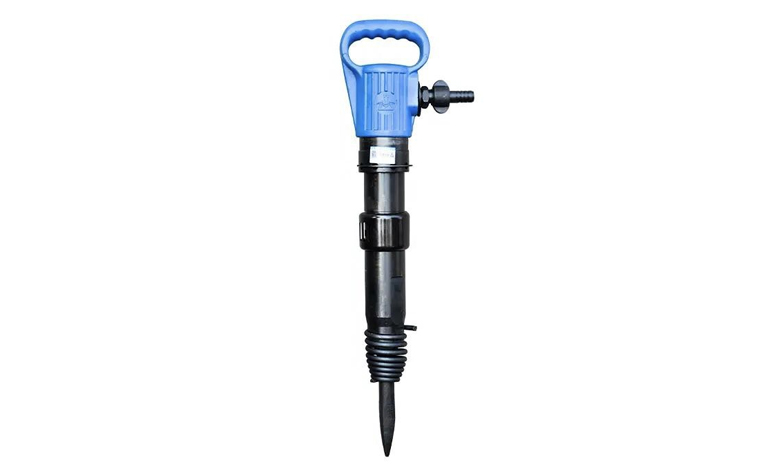

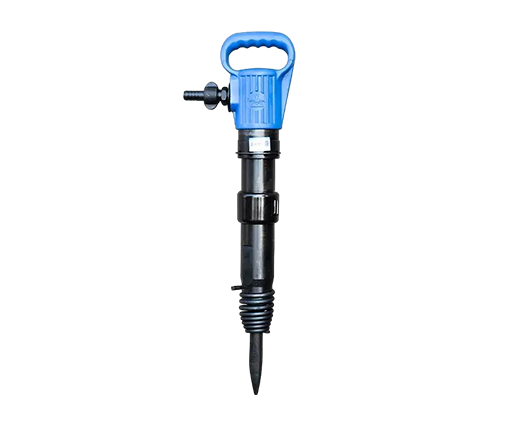

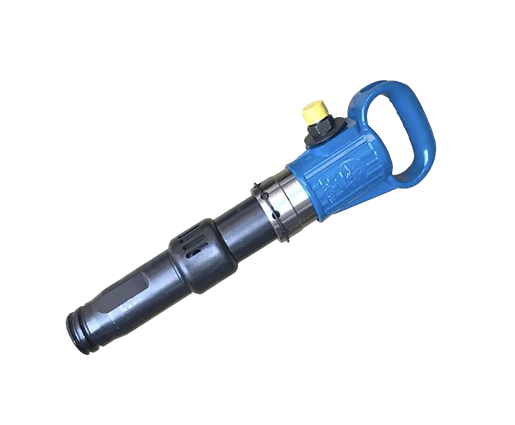

The pneumatic pick hammer is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
Advantages of Pneumatic pick hammer:
1.Energy-saving and efficient.
2.Fit for wet drilling in medium-hard or hard rock.
3.High performance and long service life
| Item No. | G11 |
| Working Pressure | 0.4-0.63Mpa |
| Length | 570MM |
| Weight | 10.4KG |
| Cylinder Diameter | 80mm |
| Piston Stroke | 155mm |
| Impact Frequency | ≥16.5HZ |
| SCFM | ≤ 26 |
| Inner diameter of air pipe | 16mm |
| Bit Shank Size | Φ24*70mm |
| Drill Depth | 5m |
